CMT112 DIGITAL DYNAMOMETER

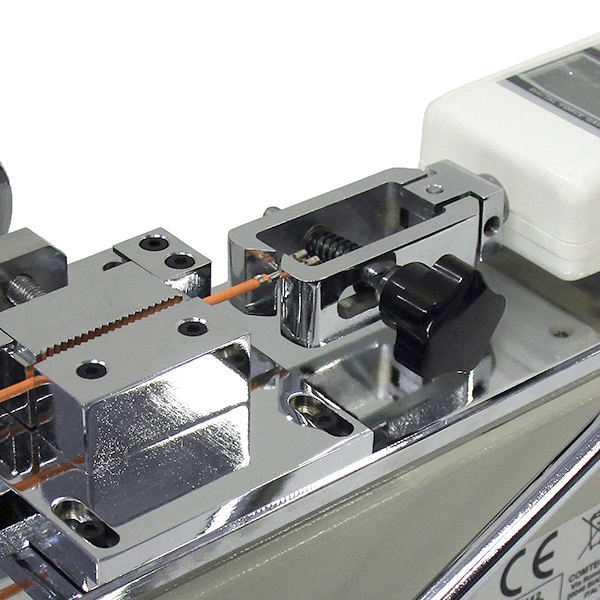

The CMT112 digital dynamometer allows you to carry out resistance tests on the extraction of crimped electrical cables. The traction force is applied by manually acting on the lever by inserting the cable with the crimped side with the cable lug into the appropriate hooking device and the free end of the cable in the clamping device. The use is easy and safe, with automatic detection of the maximum value, high precision and excellent reproducibility of the results. Suitable for quality control in the laboratory and production. For the housing of the cable to be tested, a clamp is provided that is able to tighten any type of terminal. The CMT112 dynamometer is also equipped with a digital instrument with RS232 communication port for connection to a PC using software (STRESS-5 on request) for data acquisition.
The machine is supplied complete with all the accessories and the instruction manual.
| Power supply: | Ni-Cd 4,8 V 600 mA batteries. |
| Measuring range: | 0,0 ÷ 500 N (0,0 ÷ 50Kg) |
| Resolution: | 0,1 N |
| Wire range: | 0,025 ÷ 6 mm² |
| Sample size: | >90 mm - Ø max. 10 mm |
| Value error: | ± 0,5% F.S. |
| Unit: | N - Kgf |
| Interface: | RS232 |
| Weight: | approx. 10 Kg |
| Dimensions: | 480 x 150 x 180 mm (L x P x H) |
